Highlights
- World’s #1 cap lamp
- Light output: 7,000 Lux
- Run time: Primary LED: 14 hrs, Secondary LED: 7 days
- Intrinsically safe certified to IECEx, ATEX and MSHA standards
- Lightweight, compact and rugged
- Flashing beacon mode
- IP67
- Flexible hardhat mounting options – fixed and adjustable clips
- Serviceable battery and components
- 2-year warranty
- Multiple charger configuration options (single, 4-unit, 10-unit, 24-unit and 48-unit)
- Anti-theft locking device
- Vehicle charger
Features

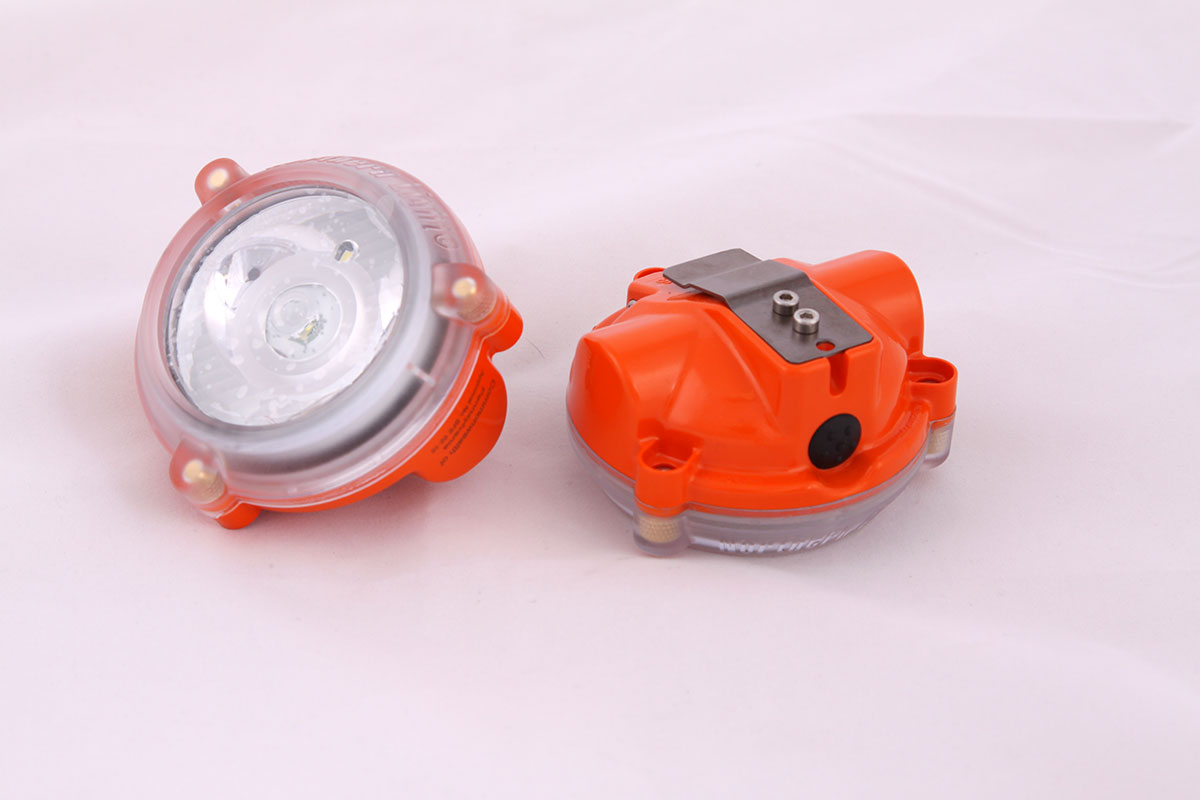

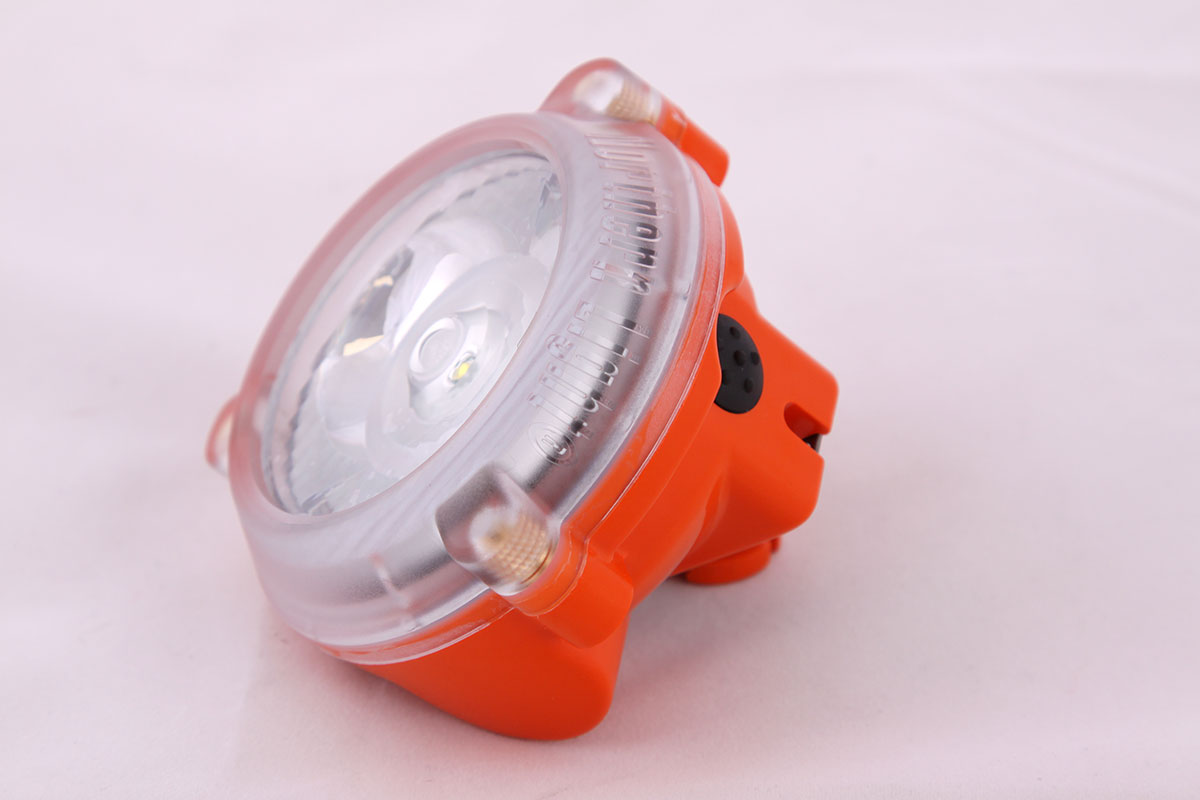

The award-winning all-in-one Polaris cap lamp is ruggedly crafted for use in the harshest environments, including underground mining and tunneling operations. Polaris uses a high-capacity lithium-ion battery and an LED light source housed in a high-impact, IP67 enclosure. Polaris was the first intrinsically safe (IS) cap lamp on the market and is IECEx, ATEX and MSHA certified.
Today, more Polaris lamps are used in mines & tunnels worldwide than any other cap lamp. Polaris is distinguished in today’s market by its high-quality construction and reliability.
The battery and all components of the Polaris are serviceable, increasing the life of the lamp, lowering the total cost of ownership and ultimately reducing waste. Check with your authorized NLT distributor or NLT for service or training.
NEW! Introducing the NLT Automated Cap Lamp Output Tester for cap lamps and flashlights.
Test and log your lamp’s output in less than 10 seconds.
Specifications
|
Battery Charge Time: |
< 10 hours |
|
Run Time: |
Main LED > 14 hours Secondary LED > 7 days |
|
Emergency Flashing: |
Activated with 5-second hold down |
|
Weight: |
170g (6oz) |
| Light Output: | 7,000 Lux |
|

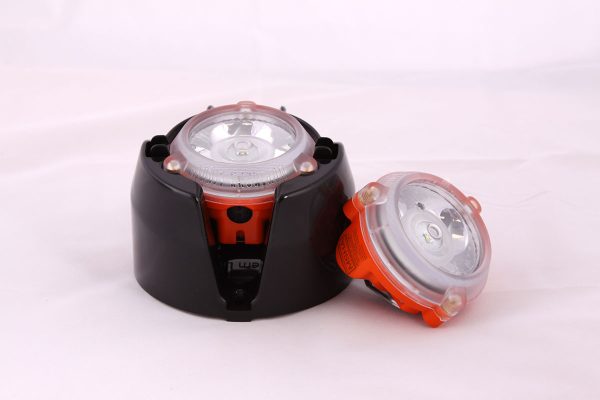

Charger Configuration: |
Single, 4, 10, 24 and 48-unit; 12 VDC adapter for vehicle connection |
|
Charger Power Source: |
120V or 240V models |
|
Charging Temperature: |
5°C to 35°C (optimum 15°C to 20°C) |
|
Water and Dust Protection: |
IP67 |
|
Approvals: |
Intrinsically Safe approved by ATEX, IECEx, MSHA |
Resources
Component Replacement Info
The battery and all components of each NLT cap lamp is serviceable, increasing the life of the lamp, lowering the total cost of ownership and ultimately reducing waste. Check with your authorized NLT distributor or NLT for service or training.
Accessories
Locking Device
NL8058
- This locking device is designed for use with all-in-one-cap lamps
Adjustable Locking Clip
NL0329
- Adjustable clip with a security locking feature to prevent cap lamp from falling out of the hard hat bracket
Adjustable Magnetic Clip
NL0314
- An adjustable clip with a magnet so the lamp can be attached to any metallic surface
- Attaches easily to most hard hats
Mini Adjustable Magnetic Clip
NL0312
- An adjustable clip with a magnet so the lamp can be attached to any metallic surface

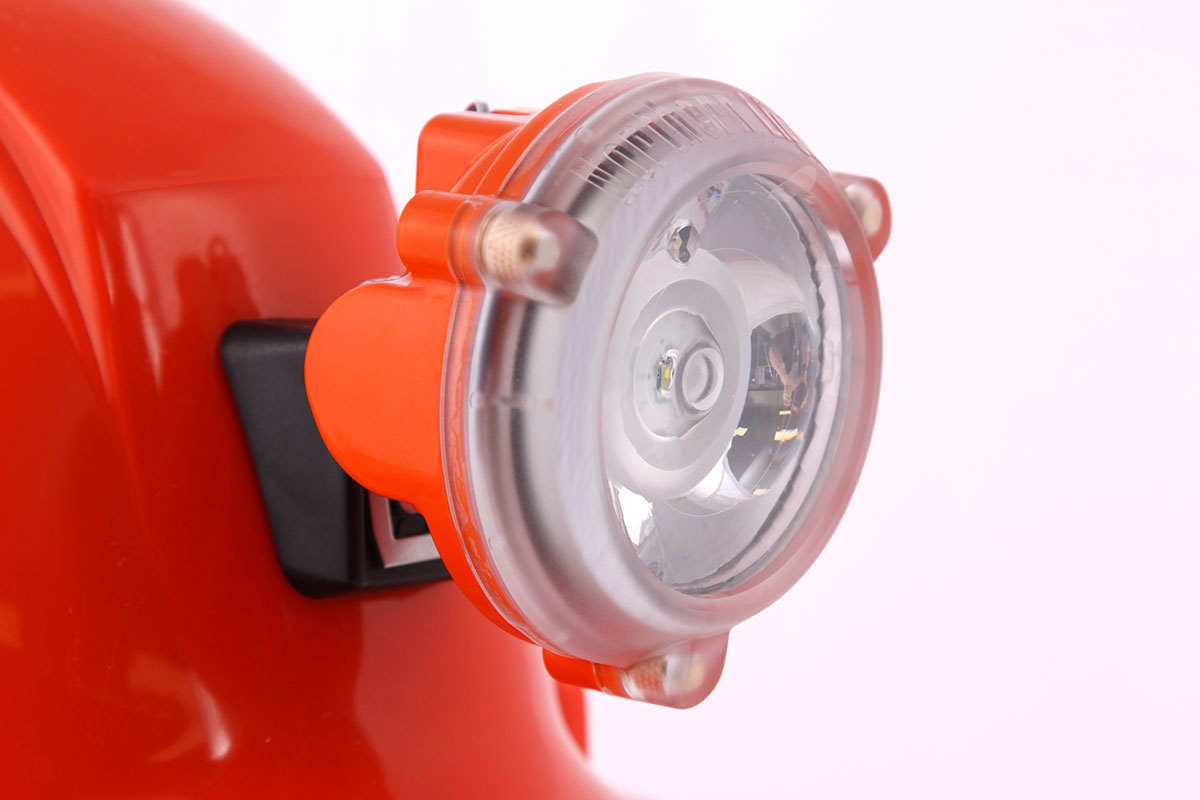

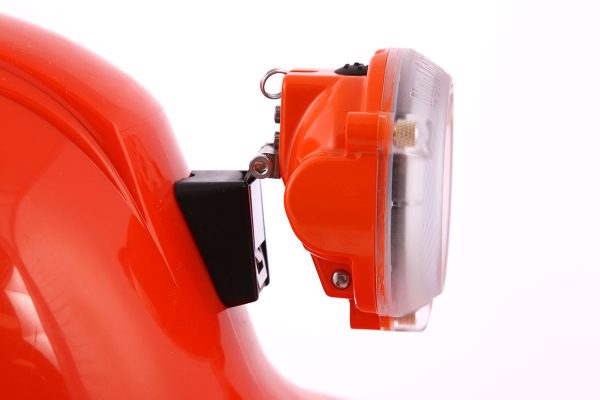

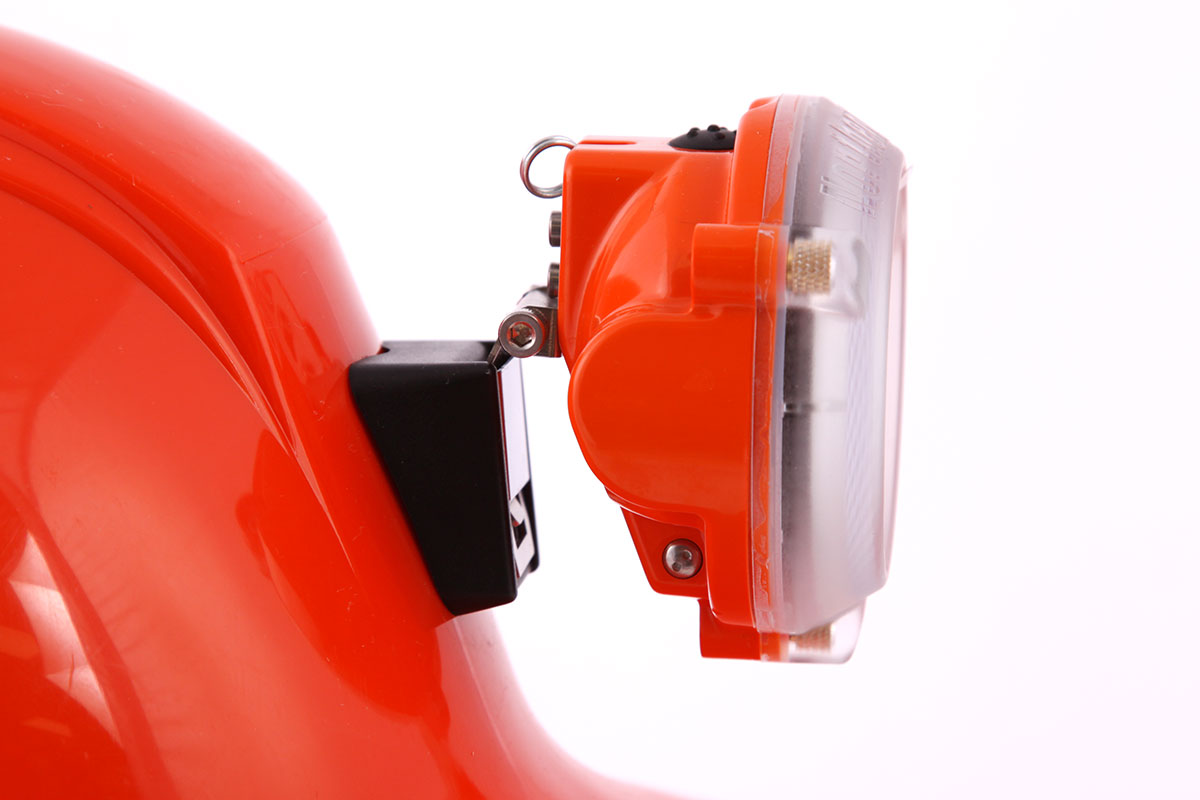

Fixed Mounting Clip
NL8005
- Cap lamp is designed so that the angle of the light shines in the normal working areas at all times and there is no need to pivot the lamp
NLT Breakaway Lanyard
NL8602
- Adjustable and detachable lamp lanyard with an aluminum swivel hook
- Cap lamps can be worn comfortably around the neck
NLT Lanyard
NL8606
- 3.8′ (.95 cm) flat breakaway lanyard with swivel hook
- Cap lamps can be worn comfortably around the neck
Dust Protector
NL7807-P10
- Keep dust and debris off your lenses with these tear-away protectors
- Pack of 10
Lamp Pouch
NL8601
- Protect your investment with this pouch designed for all-in-one cap lamps
- Black with NLT logo
Nano Lens Protector
NL7901-P10
Warranty
Northern Light Technologies (NLT) guarantees that Eclipse*, Polaris, Polaris Plus, Genesis*, Genesis Plus*, Rebel and Rebel Plus cap lamps, and related charging systems, will be free of material and workmanship defects for a period of 24 months from the serialized date on the product.
Messenger, Eagle* and Falcon* cap lamps, and related charging systems, and the NLT Automated Cap Lamp Output Tester will be free from defects in material and workmanship for a period of 12 months from the serialized date on the product.
Excluded from the warranty are items or components that are considered to be prone to high wear, such as: rubber components, cables, strain reliefs, covers, lenses and clips.
This warranty does not apply to NLT product performance due to the installation or integration of non-approved third-party components or solutions, such as, but not limited to tracking tags.
This warranty is conditional upon the proper use, maintenance, operation, charging and protection according to instructions within NLT User Guides.
NLT’s responsibility for any loss or damages, regardless of cause, shall not exceed, under any circumstances, the original purchase price of the product to the original purchaser.
*Tag warranty is based on that offered by the 3rd-party solution provider.
Non-Warranty Repairs Policy
NLT will repair any product that is outside the Warranty Policy under the following conditions:
- All returns must be approved by an NLT customer service representative in advance through the issuance of a Return Goods Authorization (RGA) number. Equipment returned without an RGA number will be subject to an administration surcharge of $50.00,
- Equipment returned to NLT with no fault found will be subject to a minimum troubleshooting charge of $10.00 per piece of equipment, plus shipping and handling,
- Refused estimates or units that are uneconomical to repair are subject to a minimum troubleshooting charge of $10.00 per unit,
- Troubleshooting charges may be applied as a discount to replacement purchases if made within 30 days,
- Repaired or replaced components are further warranted for 1 year from the repair date excluding high-wear components as detailed above.
