Designed & Manufactured in Canada

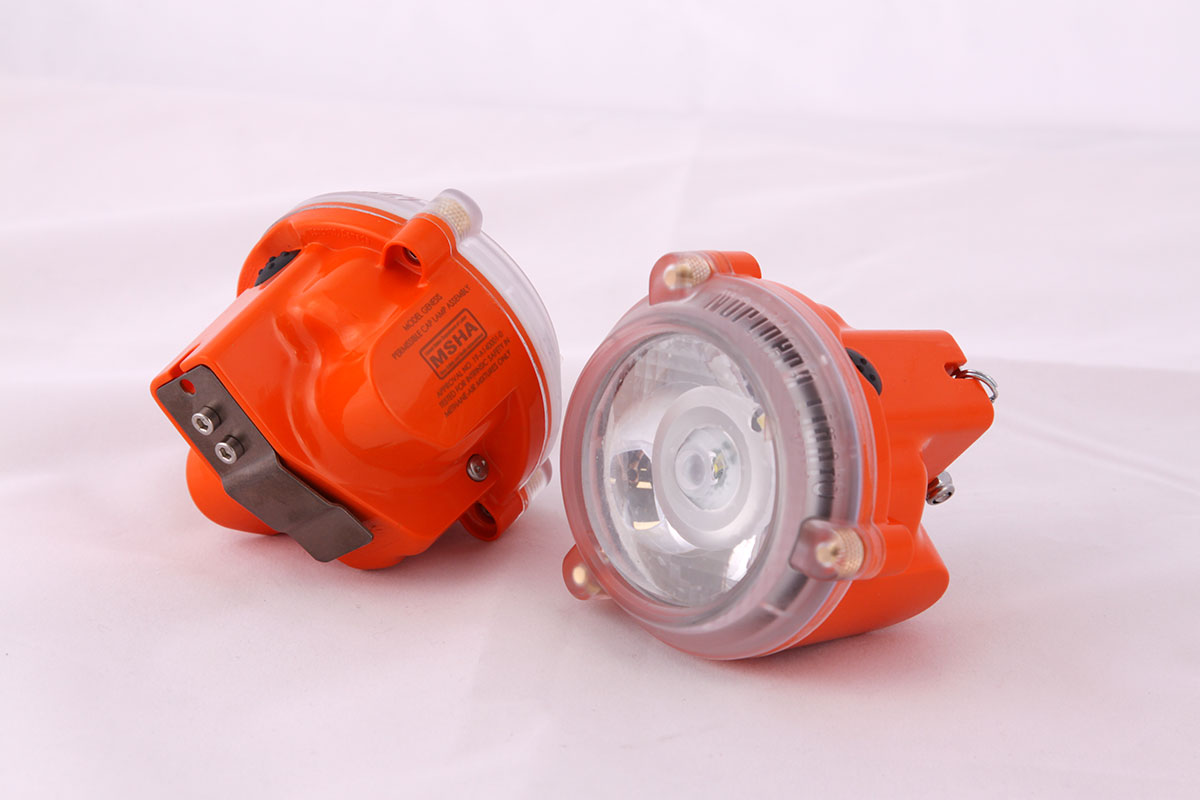

Genesis

7,000 Lux Output / Smart / Intrinsically Safe / Cordless
Share

Highlights

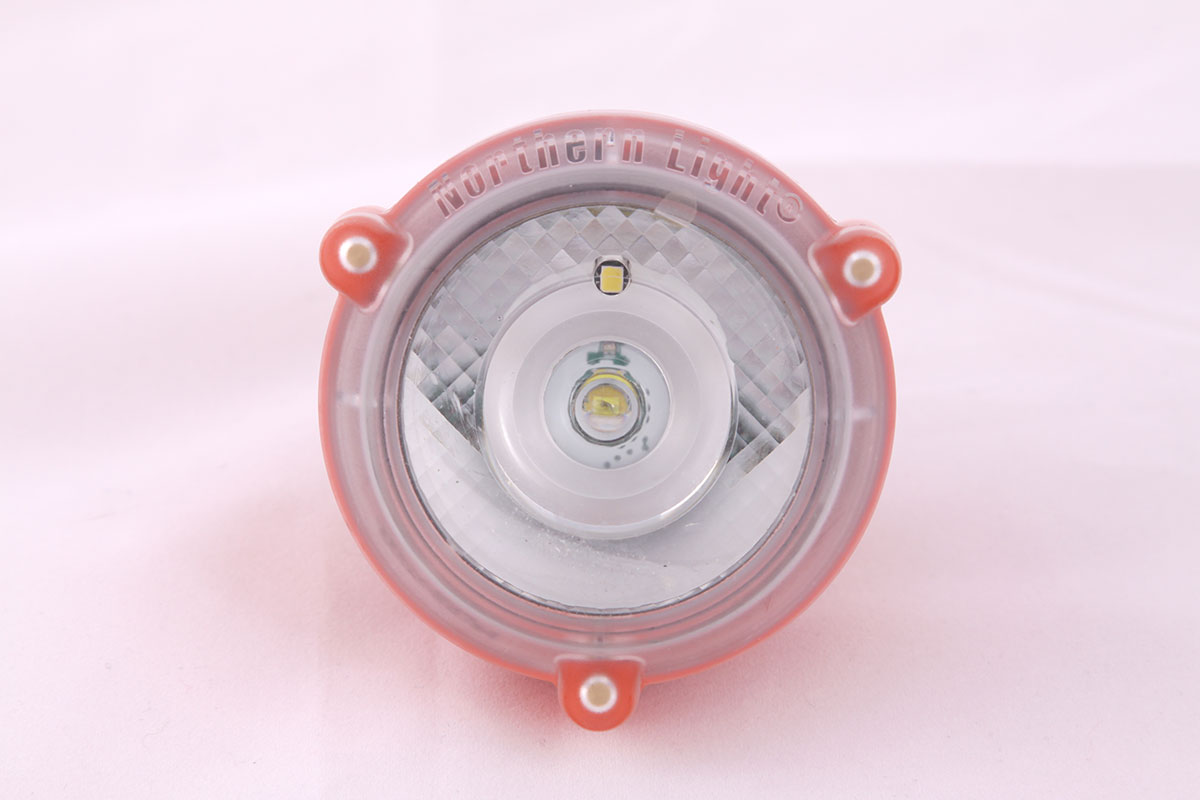

  • Light output: 7000 lux
  • Run time:
  • Primary LED: 14hrs
  • Secondary LED: 7Days
  • Tracking tag enabled
  • Intrinsically safe certified to IECEx, ATEX and MSHA standards
  • MSHA-certified with Aeroscout tracking tag
  • Customizable for bi-directional communication
  • Flashing beacon mode
  • IP67
  • Replaceable battery and components
  • 2-year warranty

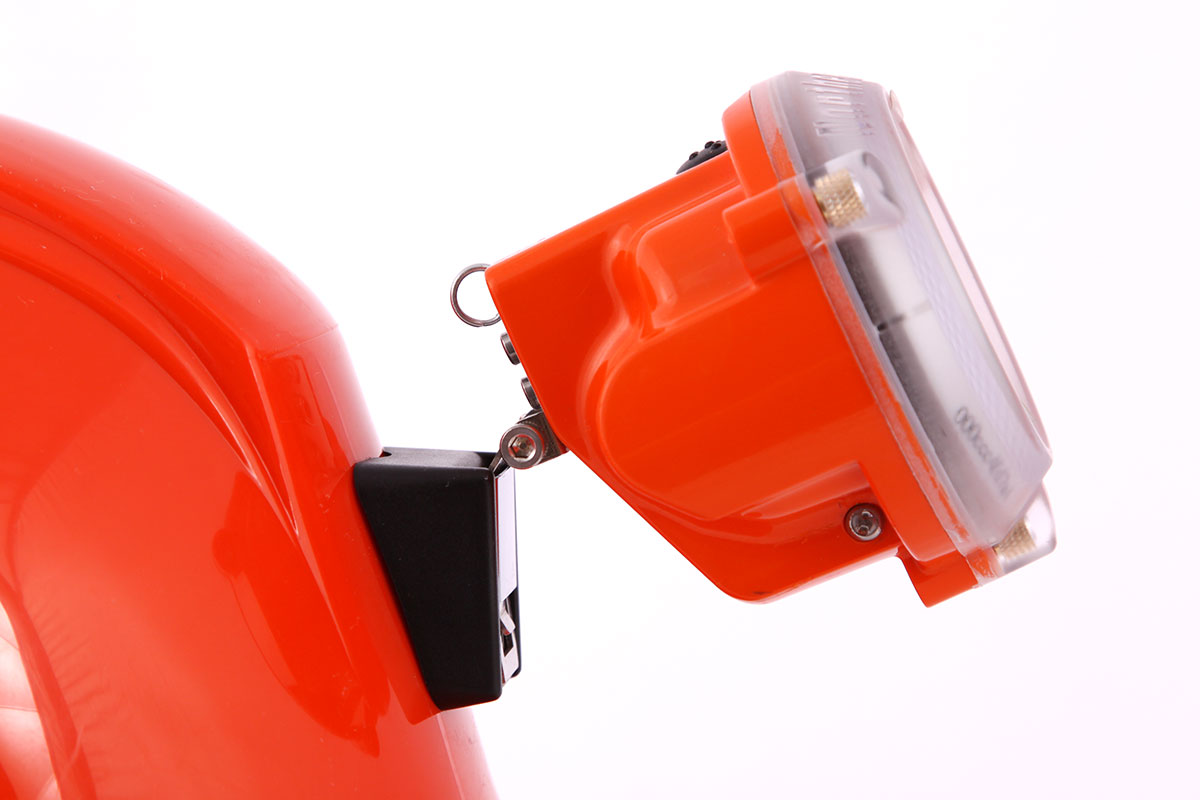

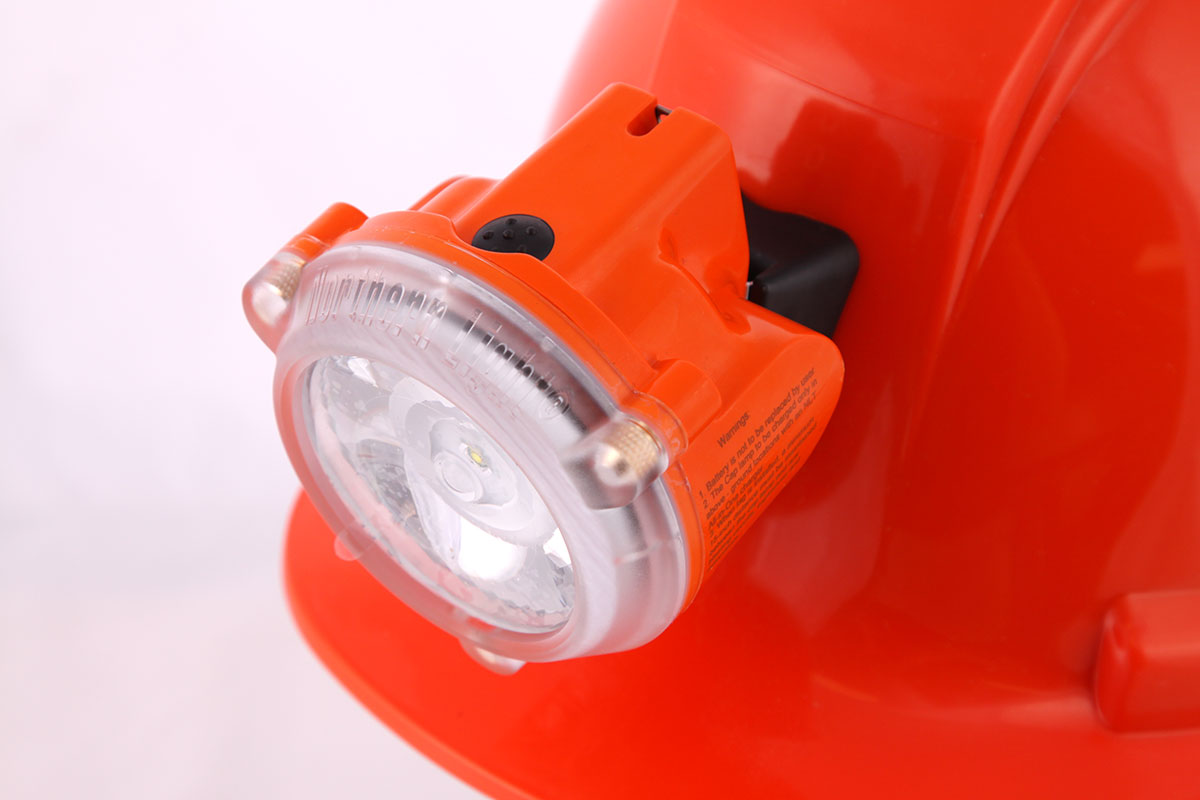

  • Flexible hardhat mounting options – fixed and adjustable clips
  • Multiple charger configuration options (single, 4-unit, 10-unit, 24-unit and 48-unit)
  • Anti-theft locking device

Features

Wi-Fi or RFID tracking tag enabled
Tags are primarily used for location tracking of personnel and access control. A key benefit is pinpointing the location of miners during an emergency.

Tag is powered by the lamp
Once installed into the NLT lamp, there is never a need to change the tag battery. The Eagle lamp provides optimum power for the tag.

Bi-directional communication
Limited bi-directional capability is enabled through the push button on the headpiece. This button is used for a variety of functions, including (but not limited to) emergency assistance (man-down) requests, acknowledging a signal/warning or triggering a warning/alarm.

Programmable Cap Lamp Lights
The fully programmable cap lamp light can be used for a variety of notifications, including safety or operational alerts, e.g., for a man-down or evacuation signal, it can flash in a pre-programmed sequence. It can also be used to signal shift change or report-to-surface instructions.

Integrated
By having the tag integrated into the cap lamp, the tag will not get left behind. This is a very important safety consideration.

NLT’s line of Smart lamps debuted with Genesis, the world’s first cordless cap lamp to accommodate a tracking tag. For use in the harshest environments, the intrinsically safe (IS), all-in-one Genesis cap lamp has the capacity to accommodate a variety tracking tag options while keeping the battery and light source in a single high-impact, IP67 rated enclosure. Its innovative engineering makes it programmable, with custom functionality to support 3rd-party solutions, as well as customizable for bi-directional communication.Genesis is certified IS to ATEX, IECEx, and MSHA as a tag-ready, standalone lamp and certified MSHA IS with Aeroscout Wi-Fi tracking tags.The Genesis is an ideal choice for mines looking for a cordless lamp today with plans to introduce tracking in the future. Since the launch of the Genesis cap lamp, NLT has worked with numerous market leaders in RFID/Wi-Fi tracking to fit their tags into our all-in-one design.

Specifications

Battery Charge Time:

< 10 hours

Run Time:

Main LED > 14 hours
Secondary LED > 7 days

Emergency Flashing:

Activated with 5-second hold down

Weight:

170g (6oz)
Light Output:  7000 lux

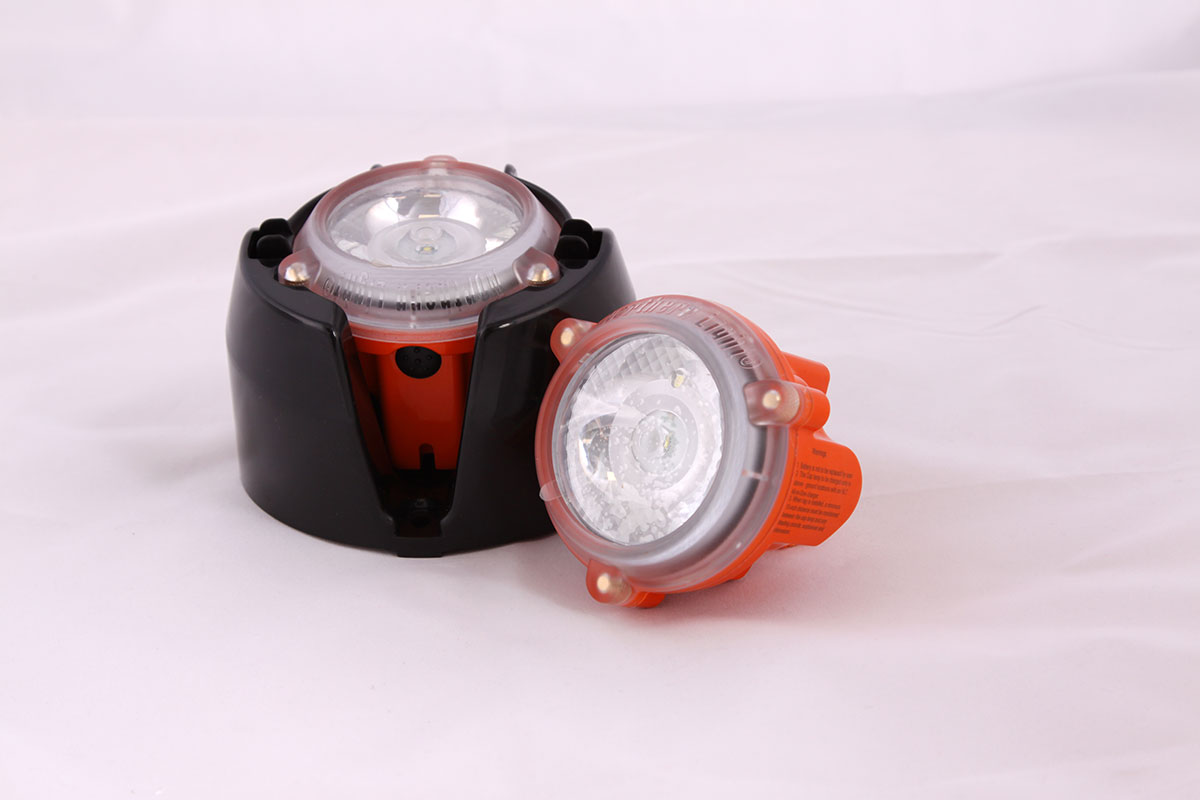

Charger Configuration:

Single, 4, 10, 24 and 48-unit rack; 12 VDC model for vehicle connection

Charger Power Source:

120V or 240V models

Charging Temperature:

5°C to 35°C (optimum 15°C to 20°C)

Operating Temperature:

-20°C to 60°C

Water and Dust Protection:

IP 67

Approvals:
(depending on version)

Intrinsically Safe approved by ATEX, IECEx, MSHA.

Resources

Data Sheet – English

Data Sheet – Spanish

Component Replacement Info
The battery and all components of the Genesis lamp are replaceable by your authorized NLT distributor.

Accessories

Locking Device

Locking Device

NL8058

  • This locking device is designed for use with all-in-one-cap lamps

Adjustable Locking Clip

Adjustable Locking Clip

NL0329

  • Adjustable clip with a security locking feature to prevent cap lamp from falling out of the hard hat bracket

Mini Adjustable Magnetic Clip

Mini Adjustable Magnetic Clip

NL0312

  • An adjustable clip with a magnet so the lamp can be attached to any metallic surface

Adjustable Clip Small

Adjustable Clip Small

NL0328

  • Adjustable clip with a security locking feature to prevent cap lamp from falling out of the hard hat bracket

Adjustable Magnetic Clip

Adjustable Magnetic Clip

NL0314

  • An adjustable clip with a magnet so the lamp can be attached to any metallic surface
  • Attaches easily to most hard hats

Standard Adjustable Clip

Standard Adjustable Clip

NL0302

  • Allows the user to adjust the angle of the light beam
  • Attaches easily to most hard hats

Fixed Mounting Clip

Fixed Mounting Clip

NL8005

  • Cap lamp is designed so that the angle of the light shines in the normal working areas at all times and there is no need to pivot the lamp

NLT Breakaway Lanyard

NLT Breakaway Lanyard

NL8602

  • Adjustable and detachable lamp lanyard with an aluminum swivel hook
  • Cap lamps can be worn comfortably around the neck

NLT Lanyard

NLT Lanyard

NL8606

  • 3.8′ (.95 cm) flat breakaway lanyard with swivel hook
  • Cap lamps can be worn comfortably around the neck

Neck Strap

Neck Strap

NL8605

  • Heavy duty lanyard designed with a heavy duty neck strap for maximum comfort
  • For use with all-in-one lamps

Cap Lamp Headband

Cap Lamp Headband

NL8604

  • An adjustable elastic headband designed for use with all-in-one cap lamps

Dust Protector

Dust Protector

NL7807-P10

  • Keep dust and debris off your lenses with these tear-away protectors
  • Pack of 10

Filters (Red, Amber, Green)

Filters (Red, Amber, Green)

NL7810-(R,A,G)-P10

  • Colour filters are perfect for hunting, visibility at night and hazy conditions
  • Won’t interfere with night vision or frighten animals
  • Pack of 10

GorillaPod

Large Magnetic GorillaPod

NL8609

  • Large GorillaPod stays connected to your lamp leaving your hands free
  • Over two dozen leg joints that bend and rotate, giving you flexibility
  • Rubberized ring and foot grips

Tripod Mounting Bracket

Tripod Mounting Bracket

NL8038

  • Fits all NLT cap lamps with any clips
  • Features a universal mounting bracket
  • Connects to all GorillaPods and most other tripods

GorillaPod Magnetic

Small Magnetic GorillaPod

NL8610

  • Small magnetic GorillaPod stays connected to your lamp, leaving you hands free
  • Over two dozen leg joints that bend and rotate, giving you flexibility
  • Super strong magnetic feet

Warranty

Warranty Policy

NL Technologies guarantees that Eclipse, Polaris, Genesis, and Rebel cap lamps, and related charging systems, will be free of material and workmanship defects for a period of 24 months from the serialized date on the product.

Eagle and Falcon cap lamps will be free from defects in material and workmanship for a period of 12 months from the serialized date on the product.

Excluded from the warranty are items or components that are considered to be prone to high wear such as: rubber components, cables, strain reliefs, covers, lenses and clips.

This warranty does not apply to NLT product performance due to the installation or integration of non-approved third-party components or solutions, such as, but not limited to tracking tags.

This warranty is conditional upon the proper use, maintenance, operation, charging, and protection according to instructions within NLT User Guides.

NL Technologies’ responsibility for any loss or damages, regardless of cause, shall not exceed, under any circumstances, the original purchase price of the product to the original purchaser.

Non-Warranty Repairs Policy

NL Technologies will repair any product that is outside the Warranty Policy under the following conditions:

  • All returns must be approved by an NLT customer service representative in advance through the issuance of a Return Goods Authorization (RGA) number. Equipment returned without an RGA number will be subject to an administration surcharge of $50.00,
  • Equipment returned to NLT with no fault found will be subject to a minimum troubleshooting charge of $10.00 per piece of equipment, plus shipping and handling,
  • Refused estimates or units that are uneconomical to repair are subject to a minimum troubleshooting charge of $10.00 per unit,
  • Troubleshooting charges may be applied as a discount to replacement purchases if made within 30 days,
  • Repaired or replaced components are further warranted for 1 year from the repair date excluding high wear components as detailed above.

Form 406W, Rev J, 24-Apr-2018
