Genesis Plus
10,000 – 15,000 Lux Output / Smart / Dual-Beam Technology / Cordless
Highlights
- Dual-Beam technology
- Light output: 10,000 Lux (15,000 Lux in Dynamic Turbo Bright mode)
- Run time: 13 hours minimum
- Tracking-tag enabled
- Customizable for bidirectional communication
- IP67
- Lightweight, compact and rugged
- Serviceable battery and components
- 2-year warranty

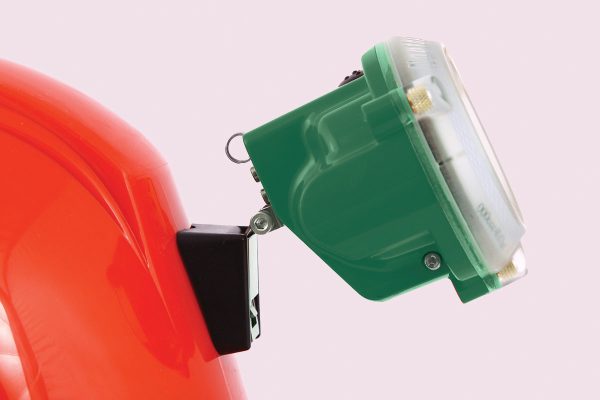

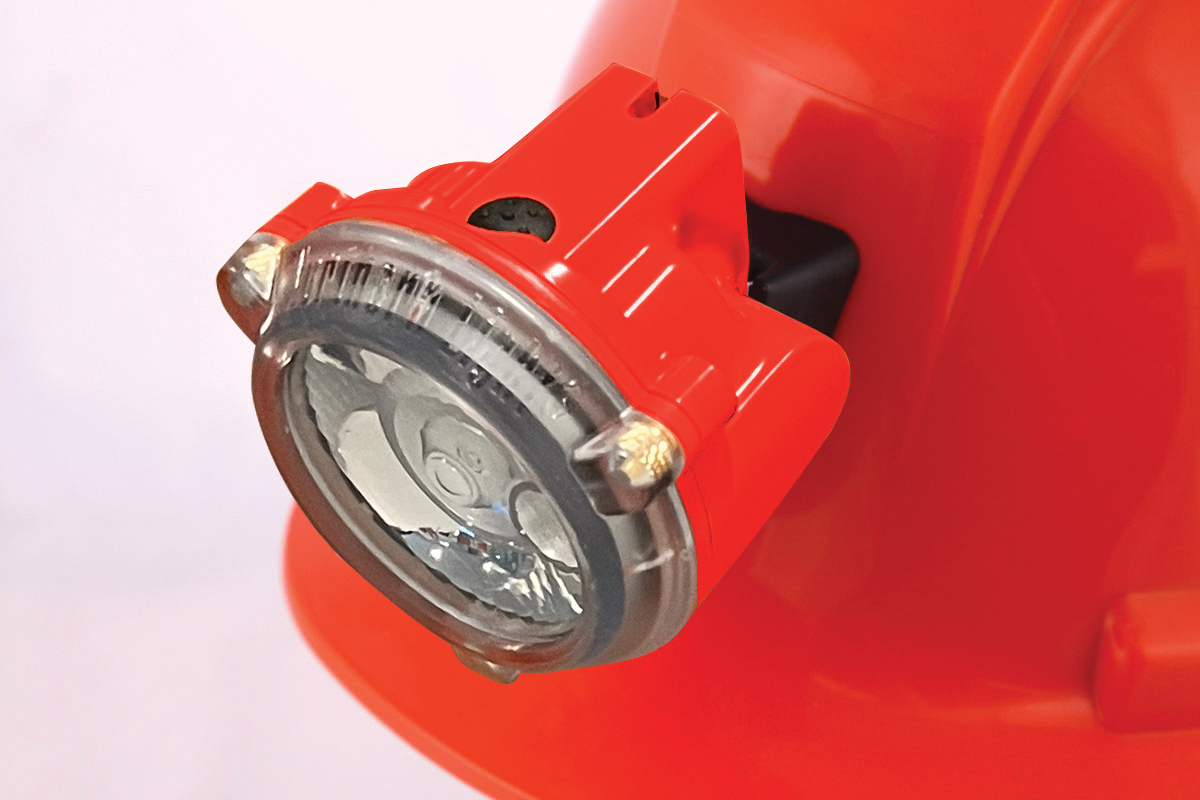

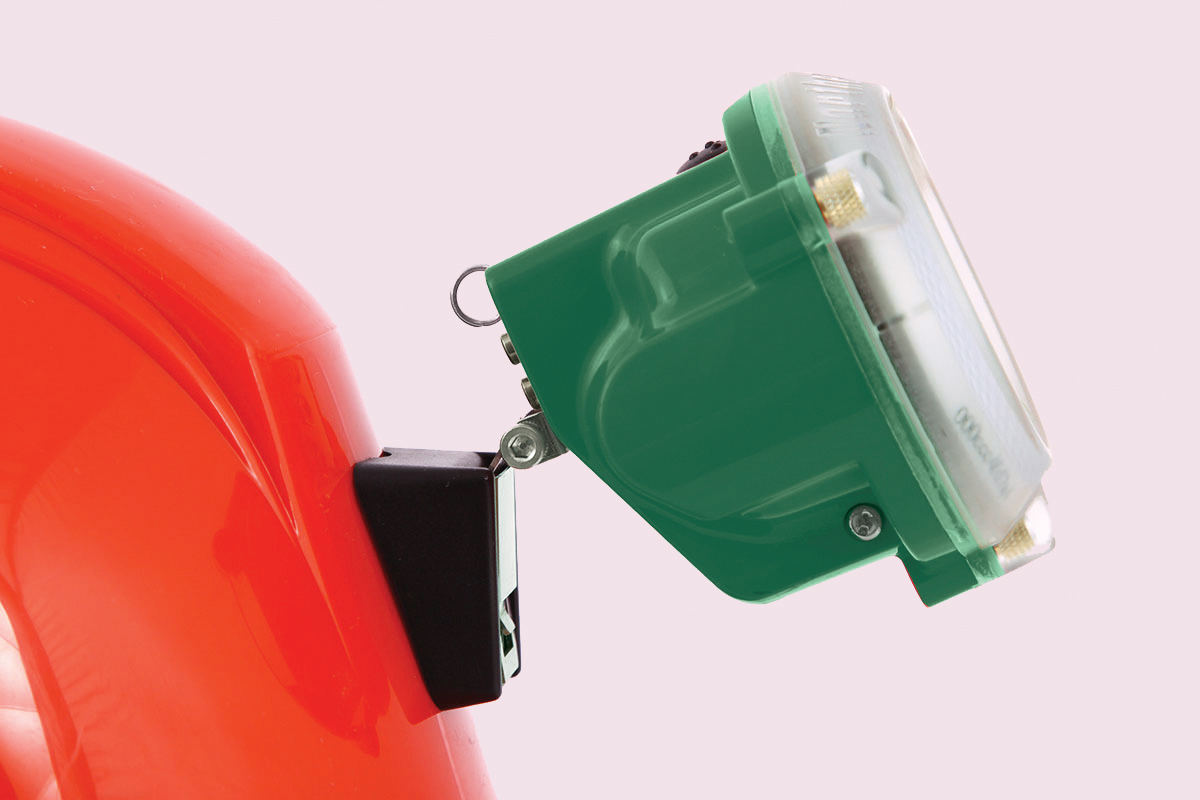

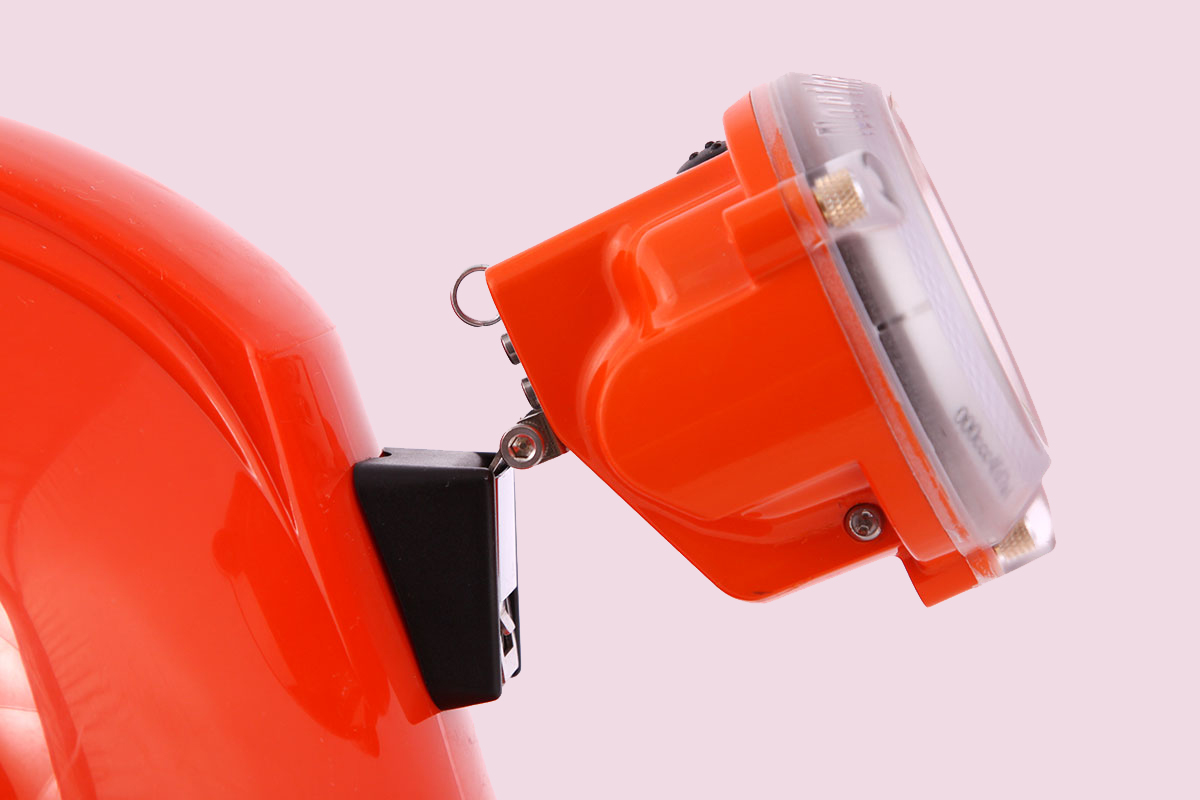

- Flexible hardhat mounting options – fixed and adjustable clips

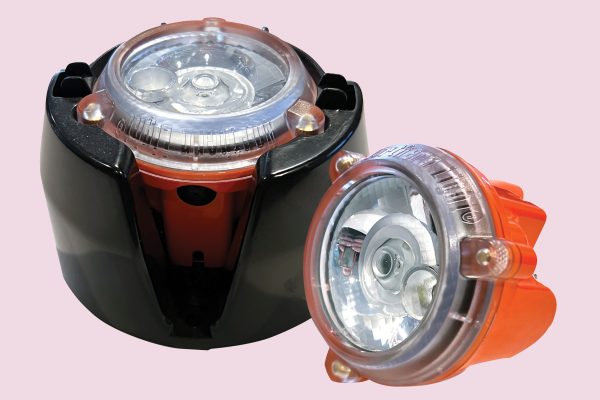

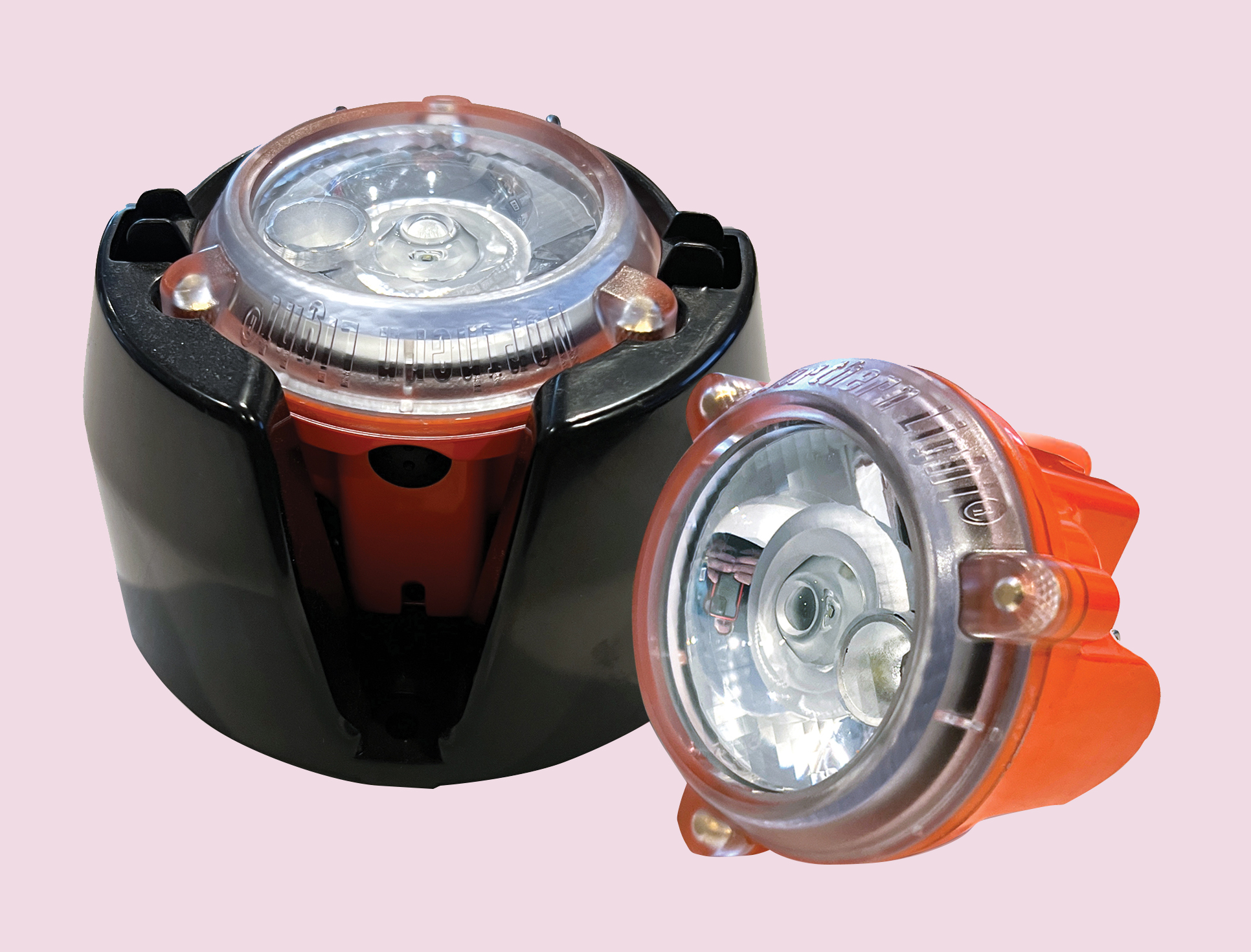

- Multiple charger configuration options (single, 4-unit, 10-unit, 24-unit and 48-unit)
- Anti-theft locking device

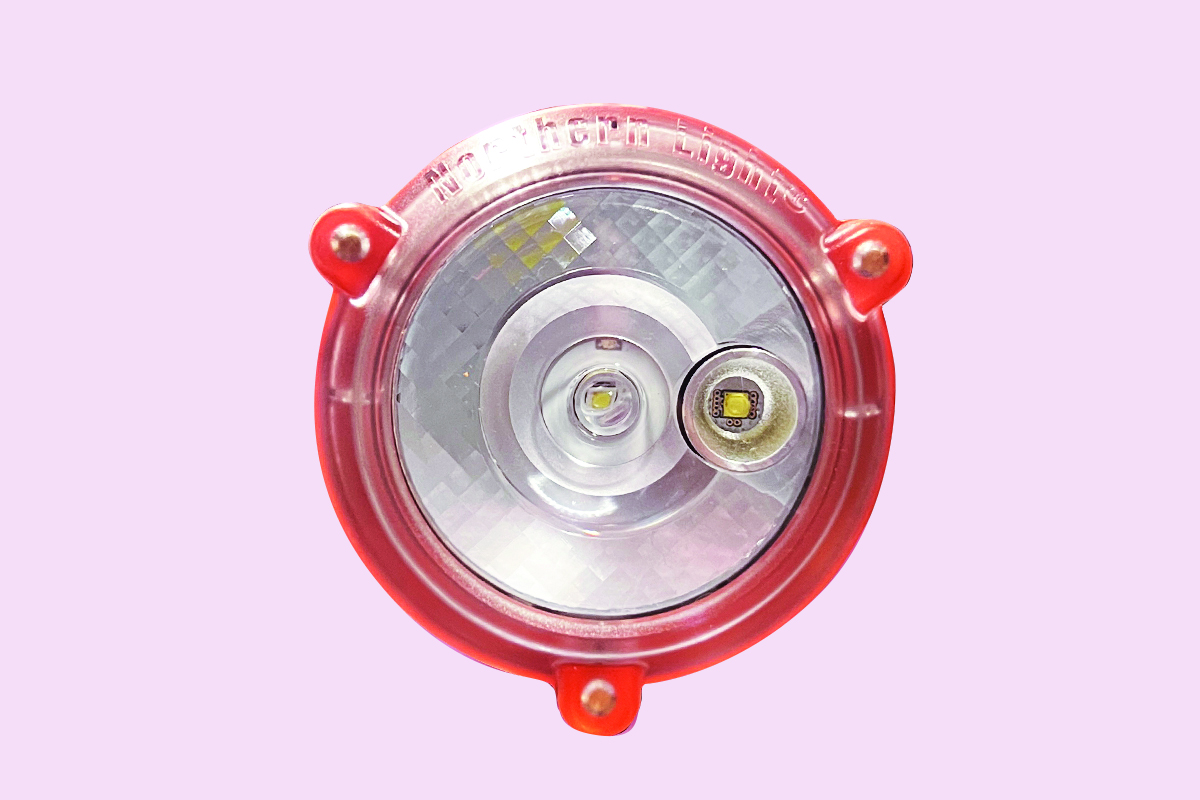

Dual-Beam Features
The Genesis Plus features three beam pattern options plus a Low-Light Setting:
- Focused Spot – NLT’s traditional beam pattern
- Wide-Angle Flood Light – a flat, even light; ideal for close-up work
- Dual-Beam – combines both beam patterns to provide a center spot with great peripheral lighting
- Low-Light Setting – reduces light output when needed (access Low-Light Setting by holding button down for one second)
Dynamic Turbo Bright
- A new feature that increases light output in any of the three beam patterns by 40% for three minutes in up to five sessions (access Dynamic Turbo Bright by holding button down for two seconds)
Smart Features
Tracking-tag (Wi-Fi or RFID) or proximity-tag enabled
Tags are primarily used for location tracking of personnel and access control. A key benefit is pinpointing the location of miners during an emergency. Proximity tags are used for worker safety.
Bidirectional communication
Limited bidirectional capability is enabled through the push button on the headpiece. This button is used for a variety of functions, including (but not limited to) emergency assistance (man-down) requests, acknowledging a signal/warning or triggering a warning/alarm.
Programmable cap lamp lights
The fully programmable cap lamp light can be used for a variety of notifications, including safety or operational alerts, e.g., for a man-down or evacuation signal, it can flash in a pre-programmed sequence. It can also be used to signal shift change or report-to-surface instructions.
Tag is powered by the lamp
Once installed into the NLT lamp, there is never a need to change the tag battery. The Genesis Plus lamp provides optimum power for the tag.
Integrated
By having the tag integrated into the cap lamp, the tag will not get left behind. Having the tag always on the miner is a very important safety consideration.
More About Genesis Plus
Genesis launched a new genre, Smart Cap Lamps, when it debuted as the world’s first cordless cap lamp to accommodate a tracking tag. Now, the Genesis Plus combines the proven features of the original – ability to accommodate a tracking or proximity tag and customizable bidirectional communication – with Dual-Beam, NLT’s new technology that offers three beam patterns and a Dynamic Turbo Bright setting.
Designed for use in the harshest underground mining and tunneling operations, the rugged Genesis Plus has a water- and dust-resistant IP67 enclosure. It also has upgraded features, including a more powerful lithium-ion battery and improved LED technology which have increased its primary light output by 33% in this new model. Additionally, all Genesis Plus components are serviceable, increasing the life of the lamp and lowering the total cost of ownership.
This cap lamp is an ideal choice for mines looking for a cordless lamp today with plans to introduce tracking in the future. Since the launch of the Genesis cap lamp, NLT has worked with numerous market leaders in RFID/Wi-Fi tracking and proximity solutions to fit their tags into our all-in-one design.
Check with your authorized NLT distributor or NLT for service or training.
NEW! Introducing the NLT Automated Cap Lamp Output Tester for cap lamps and flashlights.
Test and log your lamp’s output in less than 10 seconds.
Specifications
|
Battery Charge Time: |
< 8 hours |
|
Run Time: |
> 13 hours |
|
Weight: |
188g (6.6oz) |
| Light Output: | 10,000 Lux / 15,000 Lux with Dynamic Turbo Bright |
|
Charger Configuration: |
Single, 4, 10, 24 and 48-unit rack; 12 VDC model for vehicle connection |
|
Charger Power Source: |
120V or 240V models |
|
Charging Temperature: |
5°C to 35°C (optimum 15°C to 20°C) |
|
Water and Dust Protection: |
IP67 |
Resources
Data Sheet – English
Component Replacement Info
The battery and all components of each NLT cap lamp is serviceable, increasing the life of the lamp, lowering the total cost of ownership and ultimately reducing waste. Check with your authorized NLT distributor or NLT for service or training.
Smart Cap Lamps Comparison Chart – English
Smart Cap Lamps Flyer – English
Smart Cap Lamps Comparison Chart – Spanish
Smart Cap Lamps Flyer – Spanish
Smart Cap Lamps Comparison Chart – French Québécois
Smart Cap Lamps Flyer – French Québécois
Accessories
Locking Device
NL8058
- This locking device is designed for use with all-in-one-cap lamps
Adjustable Locking Clip
NL0329
- Adjustable clip with a security locking feature to prevent cap lamp from falling out of the hard hat bracket
Mini Adjustable Magnetic Clip
NL0312
- An adjustable clip with a magnet so the lamp can be attached to any metallic surface
Adjustable Clip Small
NL0328
- Adjustable clip with a security locking feature to prevent cap lamp from falling out of the hard hat bracket
Adjustable Magnetic Clip
NL0314
- An adjustable clip with a magnet so the lamp can be attached to any metallic surface
- Attaches easily to most hard hats
Standard Adjustable Clip
NL0302
- Allows the user to adjust the angle of the light beam
- Attaches easily to most hard hats
Fixed Mounting Clip
NL8005
- Cap lamp is designed so that the angle of the light shines in the normal working areas at all times and there is no need to pivot the lamp
NLT Breakaway Lanyard
NL8602
- Adjustable and detachable lamp lanyard with an aluminum swivel hook
- Cap lamps can be worn comfortably around the neck
NLT Lanyard
NL8606
- 3.8′ (.95 cm) flat breakaway lanyard with swivel hook
- Cap lamps can be worn comfortably around the neck
Neck Strap
NL8605
- Heavy duty lanyard designed with a heavy duty neck strap for maximum comfort
- For use with all-in-one lamps
Cap Lamp Headband
NL8604
- An adjustable elastic headband designed for use with all-in-one cap lamps
Dust Protector
NL7807-P10
- Keep dust and debris off your lenses with these tear-away protectors
- Pack of 10
Small Magnetic GorillaPod
NL8610
- Small magnetic GorillaPod stays connected to your lamp, leaving your hands free
- Over two dozen leg joints that bend and rotate, giving you flexibility
- Super strong magnetic feet
Large Magnetic GorillaPod
NL8609
- Large GorillaPod stays connected to your lamp, leaving your hands free
- Over two dozen leg joints that bend and rotate, giving you flexibility
- Rubberized ring and foot grips
Tripod Mounting Bracket
NL8038
- Fits all NLT cap lamps with any clips
- Features a universal mounting bracket
- Connects to all GorillaPods and most other tripods
Warranty
Northern Light Technologies (NLT) guarantees that Eclipse*, Polaris, Polaris Plus, Genesis*, Genesis Plus*, Rebel and Rebel Plus cap lamps, and related charging systems, will be free of material and workmanship defects for a period of 24 months from the serialized date on the product.
Messenger, Eagle* and Falcon* cap lamps, and related charging systems, and the NLT Automated Cap Lamp Output Tester will be free from defects in material and workmanship for a period of 12 months from the serialized date on the product.
Excluded from the warranty are items or components that are considered to be prone to high wear, such as: rubber components, cables, strain reliefs, covers, lenses and clips.
This warranty does not apply to NLT product performance due to the installation or integration of non-approved third-party components or solutions, such as, but not limited to tracking tags.
This warranty is conditional upon the proper use, maintenance, operation, charging and protection according to instructions within NLT User Guides.
NLT’s responsibility for any loss or damages, regardless of cause, shall not exceed, under any circumstances, the original purchase price of the product to the original purchaser.
*Tag warranty is based on that offered by the 3rd-party solution provider.
Non-Warranty Repairs Policy
NLT will repair any product that is outside the Warranty Policy under the following conditions:
- All returns must be approved by an NLT customer service representative in advance through the issuance of a Return Goods Authorization (RGA) number. Equipment returned without an RGA number will be subject to an administration surcharge of $50.00,
- Equipment returned to NLT with no fault found will be subject to a minimum troubleshooting charge of $10.00 per piece of equipment, plus shipping and handling,
- Refused estimates or units that are uneconomical to repair are subject to a minimum troubleshooting charge of $10.00 per unit,
- Troubleshooting charges may be applied as a discount to replacement purchases if made within 30 days,
- Repaired or replaced components are further warranted for 1 year from the repair date excluding high-wear components as detailed above.
10-Mar-2022
